MINIPowerPLUS

Flexible tower or rack-mounted UPS system with a unique scalable design featuring easy to replace modules. Built for offices and IT rooms where space is limited and equipment must deliver value for money. Reliable and resilient, the single phase MINIpower PLUS range provides power protection in 5kVA or 10kVA UPS systems.

Description

Choose from the MINIPowerPLUS 5000 or 10000 in a compact rack-mounted or tower configuration. All units feature automatic bypass, battery test function and temperature dependant fan speed.


MINIpowerPLUS 5000 and 10000 models

The compact 5000 model is a space-saving tower which takes up to 4 x 1.25kVA power boards and four strings of batteries. The 10000 model allows 4 to 8 boards for a maximum output of 10kVA which accommodates up to 10 string batteries.

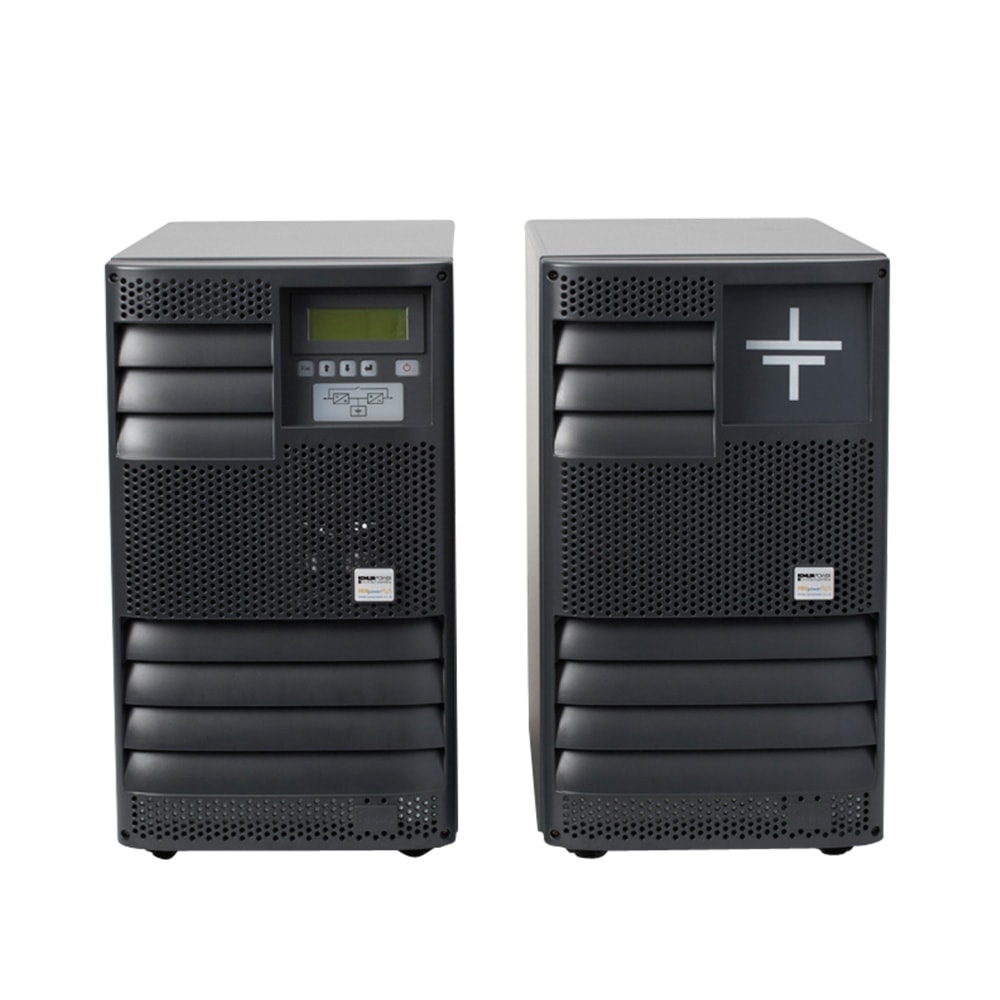

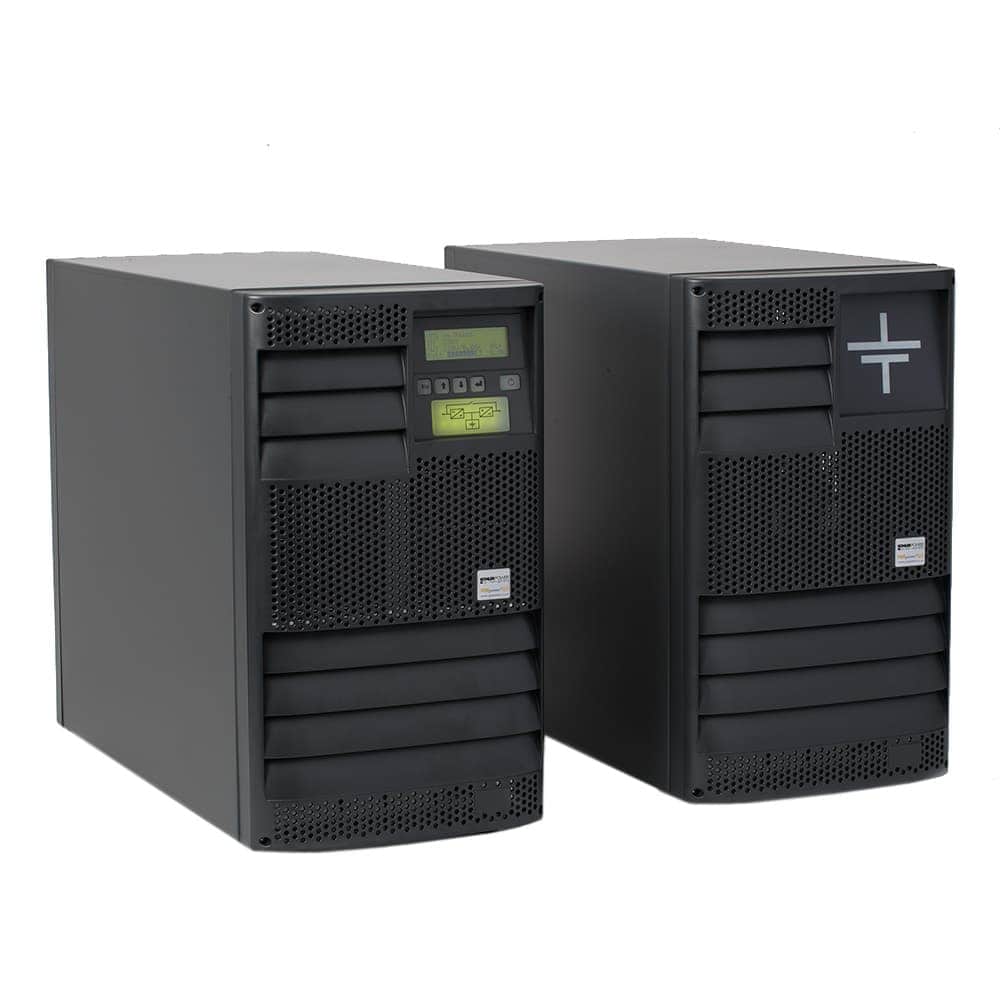

Flexible tower system

Space-saving tower delivering either 5kVA or 10kVA of power in a unit measuring 270 x 475 x 570mm. A flexible uninterruptible power supply system for future proof scalability.

Rack-mounted version

19” rack-mounted UPS system with 4 power boards. Each UPS power board is 1.25kVA  and can provide 5kVA in capacity or 3.75kVA in parallel redundant (N+1) mode. Additional backup UPS batteries can be added in a separate rack-mounted unit.

User-friendly display screen

Multi-functional display for regular monitoring of system performance. Shows battery life, current, frequency and power.

Communications options

Fitted with D-type connectors to allow for multiple external connections. Designed for small IT rooms and offices that need a single phase UPS system that connects to external equipment.

Future-proof scalability

Additional modules and batteries can be added without replacing the whole system. Lifetime cost is kept to a minimum whilst allowing for future scalability.

To request more details about the MINIpowerPLUS from one of the leading single phase UPS suppliers in the UK, make an enquiry using the form below or call us on 0800 731 3269.

Additional information

Actual kVA

1-10 kVA

Type

Single phase

Max. power per frame with N+1 redundancy

8.75kVA N+1

Power range per module

1.25kVA

Rated output voltage range

220/230/240V single phase

Working mode

Online double conversion

Efficiency

Up to 92%

Power density per m2

Up to 45kW/m2 / 65kVA/m2

Battery compartment

Option

Maintenance bypass

Standard

Network/web interface

Option

Volt free contacts

Standard

Input current distortion THDi @100% load

< 3%

Input power factor @100% load

0.99

Scalable (N+1)

Yes (vertical)

Hot-swappable modules

No

ECA scheme approved

No

Transformerless

No

Standalone / Modular

Standalone

Documentation
