10-200kVA, Three-Phase, Modular

Ideal for: low to medium, high density power applications such as commercial fit-out

Widely proven, highly reliable three-phase UPS built for low to medium, high density power protection applications. Resilient modular design using proven Decentralised Parallel Architecture (DPA) technology. The KOHLER PW 8000DPA offers high energy efficiency, 99.9999% availability and flexible scalability in either a tower or rack-mountable solution.

  • Capacities from 10kVA to 200kVA in 10 or 20kVA modular steps
  • Parallelable frames up to 400kVA

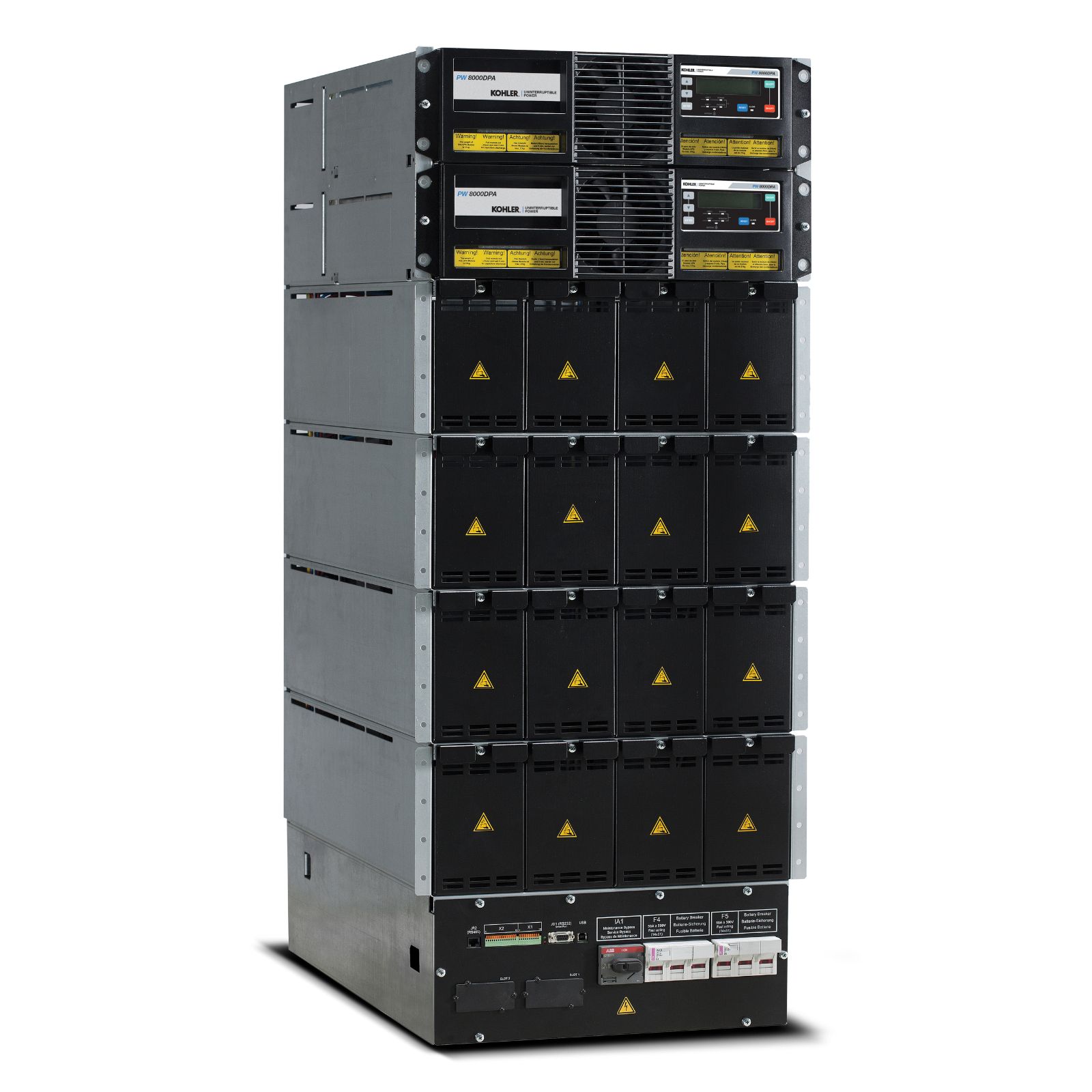

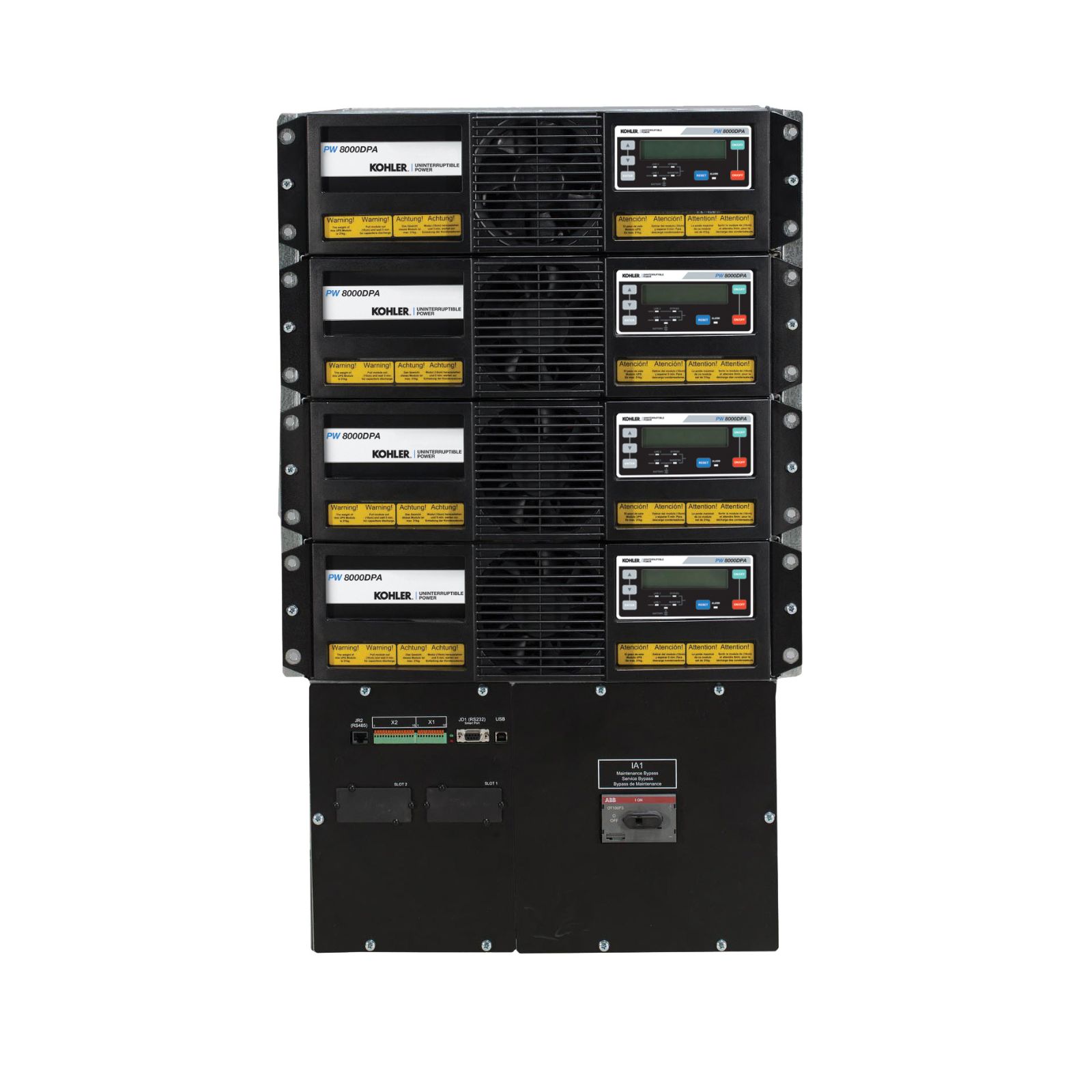

  • Available as tower (ST) or 19” rack-mountable (RI) solutions

More Information

Designed to be one of the most reliable uninterruptible power supply systems in the industry, offering 24/7 availability and low total cost of ownership with pay-as-you-grow flexibility.

Tower or rack-mountable solution

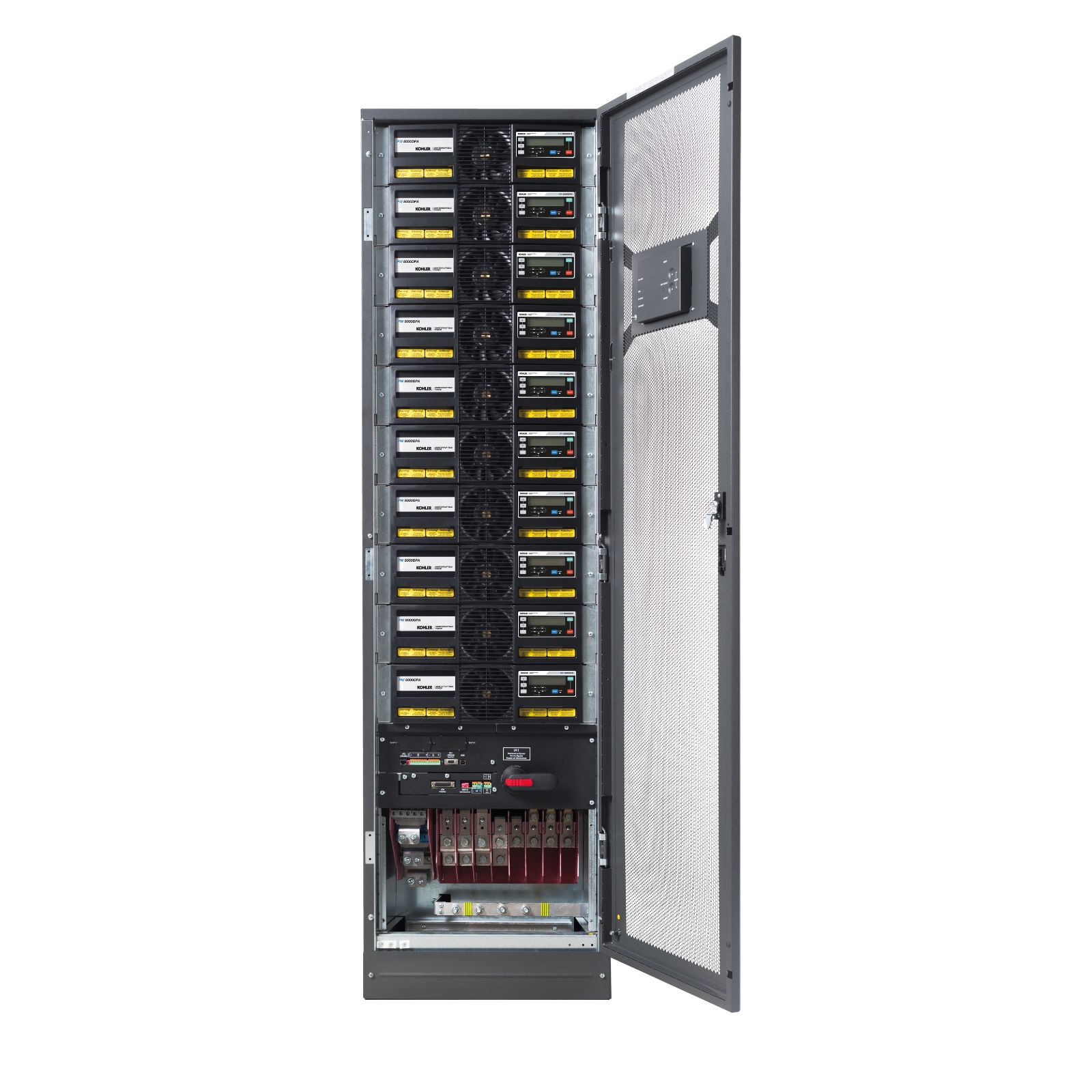

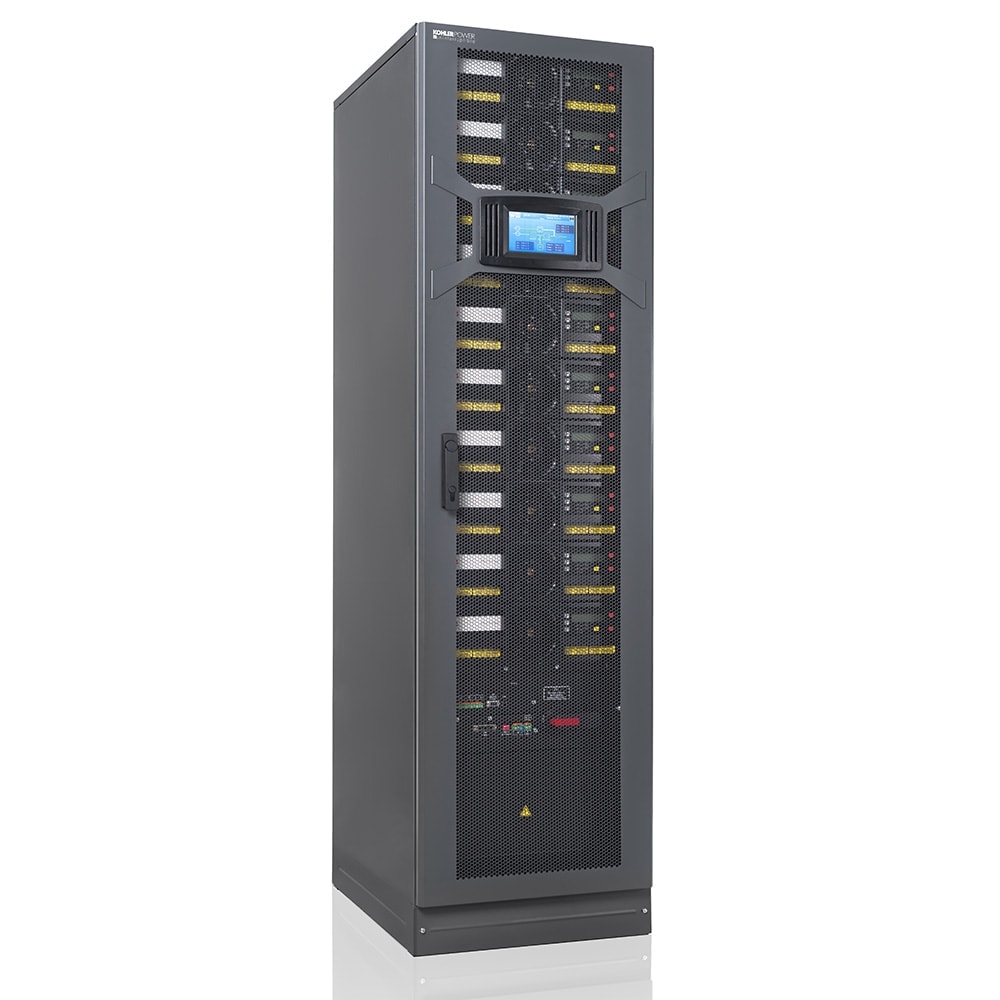

Tower solution for high density applications requiring power from 10kVA to 200kVA. 19” rack-mountable solution for integrated IT or telecom applications, providing up to 80kVA. Parallelable horizontally up to 400 kW

‘Hot-swap’ modular power protection

Future scalability with easy upgrades from 10kVA to 200kVA in 10kVA or 20kVA modules. No downtime even during UPS maintenance or upgrades.

‘Six nines’ availability

Outstanding 99.9999% availability for continuous power protection, even in the most demanding process-related environments where new server technologies change daily.

Blade friendly

Remarkable reliability for supporting blade servers. The 3 phase UPS power supply provides fully rated output power in the 0.9 leading to 0.8 lagging range.

To request more details about the KOHLER PW 8000DPA make an enquiry using the form below or call us on 0800 731 3269.

Technical Specification

Actual kVA 10-200kVA
Type Three-phase
Standalone / Modular Modular
Parallelable up to 2-4 frames (400kVA)
Rated output voltage range 380/220; 400/230; 415/240V three-phase
Working mode Online double conversion
Efficiency Up to 95.5%
Power density per m2 Up to 158 kW/m2 / 158kVA/m2
Battery compartment External battery cabinets or integrated in UPS cabinets
Maintenance bypass Standard
Network/web interface Option
Volt free contacts Standard
Input current distortion THDi @100% load < 3%
Scalable (N+1) Yes (vertical)
Hot-swappable modules Yes
Transformerless Yes
