Data centre tier classifications and their impact on UPS power supplies

For organisations depending on high volume online transactions, the highest possible data processing availability becomes the dominating requirement. Such organisations typically aspire to availability of 99.999%, often referred to as ‘five-nines’. Other applications, with less critical loads, trade-off between availability, capital costs and operating costs to best match their business priorities. With that in mind, Kenny Green, technical services manager for KOHLER Uninterruptible Power, a KOHLER company, looks at the four data centre tier classifications and explains the impact they have on UPS power supplies.

TUI Data centre tier classification system

Developed by The Uptime Institute (TUI), the Tier Classification and Performance Standard defines four levels of availability for a complete site, ranging from the basic Tier l to the highest-availability Tier lV. The true significance of a data centre operations TUI tier rating arises because it depends on all aspects of the site’s infrastructure that impact data centre operations, including both subsystems, installed and operational sustainability. This, in turn, involves many factors, including topology decisions, about robustness and operability, construction implementation, site management and staffing. The rating is also constrained by the data centre infrastructure lowest-rated aspect. For example, a site with a robust Tier lV UPS installation and a Tier ll chilled water system will be limited to a Tier ll site rating.

TUI tier classification system

Table 1 shows the key parameters for the standard’s four data centre tier classifications. The system is based on two variants of two design techniques – dual cording and redundancy.

TierA% Power SystemMTBF (Relative)COST (Relative)
l0.999833311
ll0.999854711.6
lll0.9999983452.2
lV0.999999924503

Dual cording refers to IT equipment that has two independent power supply inputs, each sufficient to meet its entire power requirement. If any event, anywhere in the data centre infrastructure should interrupt one power feed, the other can continue to drive the IT load, without the load suffering power interruption or loss. This is redundancy at the power distribution path level.

Redundancy brings the same type of resilience to a power failure at a system level, using a technique known as ‘N+1’. In  UPS systems, for example, if a configuration with N modules is sufficient to entirely support a critical load, then a configuration containing N+1 modules would continue to support the load without power interruption or loss even if one uninterruptible power supply module fails.

Accordingly, a Tier l basic data centre infrastructure has non-redundant capacity components and a single, non-redundant power distribution path serving the ICT equipment. Within such a system, conditioned power to the load is lost whenever the uninterruptible power supply has to be shut down for UPS maintenance, or if a fault in the UPS power supply or power line occurs. Tier ll is an improvement on this, as it introduces redundancy in the infrastructure components as indicated by N+1 in Table 1. This gives power protection from a single failure and allows a degree of concurrent UPS maintenance.

Tier lll has a dual bus power system connected to critical loads with dual power supply inputs. It includes Tier ll type redundant capacity component configuration. Typically, only one power bus serves the ICT equipment at any one time. Concurrent UPS maintenance is fully supported. Tier lV, the highest rating and is classified as a fault-tolerant site infrastructure. It comprises two physically segregated active power paths, each with an independent Tier ll system. It offers very high availability, concurrent UPS maintenance and near total fault tolerance.

Availability

The ultimate point of achieving a data centre tier classification is the availability that it brings. Availability can be increased either by increasing Mean Time Between Failures (MTBF) or by decreasing Mean Time To Repair (MTTR). It can be calculated using the equation

Availability = MTBF x 100%
               MTBF + MTTR

However, because the data centre operations overall availability is based on that of each of its critical subsystems, each subsystem must achieve much higher performance, meaning every subsystem has to achieve 99.9994% – the magic Five-Nines – for the data centre to receive the ultimate Tier lV site rating.

The equation shows how MTBF and MTTR can both be varied to produce a target availability. However, in reality, MTTR values must be kept to minimal levels to generate availability levels sufficient for the higher data centre tiers. Additionally, true MTTR calculations must allow for travel time to site and depend on the availability of any required spare parts together with first-time, fast fix capability.

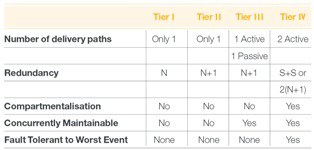

Table 2 shows the relative capital costs of different Tiers

Increased Availability comes at a cost, in terms of both capital and operating expenditure, for Tier classified power systems. Table 2 shows the relative capital costs of different Tiers, using the Tier l figures as a base reference.

Impact of modern UPS technology

Tier lV requirements were recently reduced by TUI from the double-redundant 2(N+1) to 2N, where each UPS system is fully redundant for the other. This raised the uninterruptible power supply module load by several percentage points. Transformerless UPS technology, due to its size and weight saving, has brought much greater efficiency at all loads, designed to achieve over 95%, even at 50% loading. It also allows UPS power supplies to be configured incrementally and right-sized to their load. Additionally, many modern UPS systems offer Eco-mode options which enable efficiencies of around 98% even at 10% load. Even users with reservations about subjecting their load entirely to eco-mode may accept using it with one of their two power buses.

If you have any questions about our uninterruptible power supplies or services please get in touch with KOHLER Uninterruptible Power via our contact page or call us on 0800 731 3269.
